ATN20 PU timing belt

Delivery time:

approximately 1 week

Product number: ATN 20

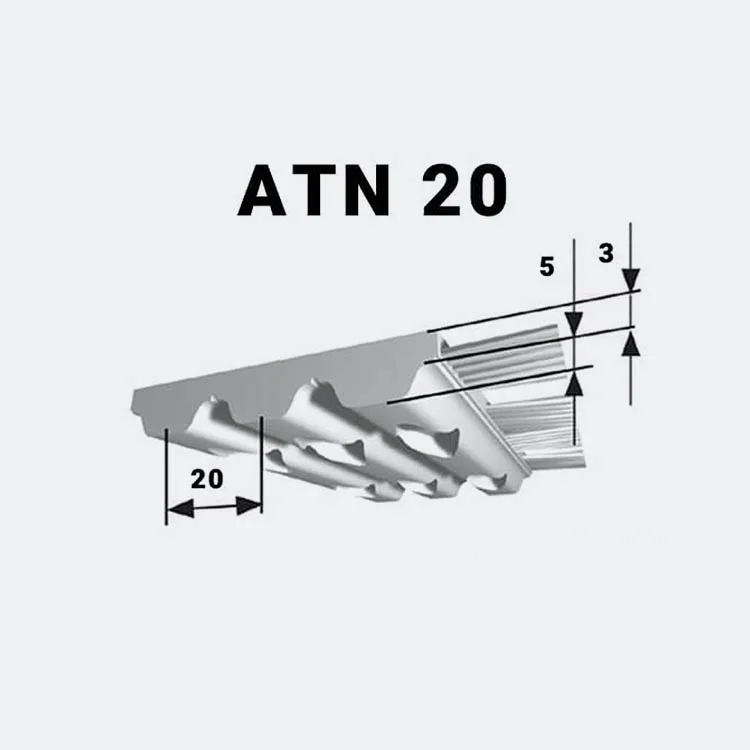

Product dimensions and weight

Height: 8.00 mm

Widths: 50, 75 & 100 mm
Standard Material: TPUST1
Food Approval: on request
Min. Disc Diameter: 80 mm
Material: PU 92° (ShA)

Enter the belt length in mm:

Choose the connection:

Choose your strap width:

Select the number of carriers:

Need help?

Description

PU timing belt ATN20 open

PU timing belts are made of polyurethane, which exhibits high wear resistance. Steel cords within the timing belt provide varying tensile strength, depending on the application.

ATN20 polyurethane timing belts offer reliable transmission capabilities. A nylon layer can be applied to the toothed side

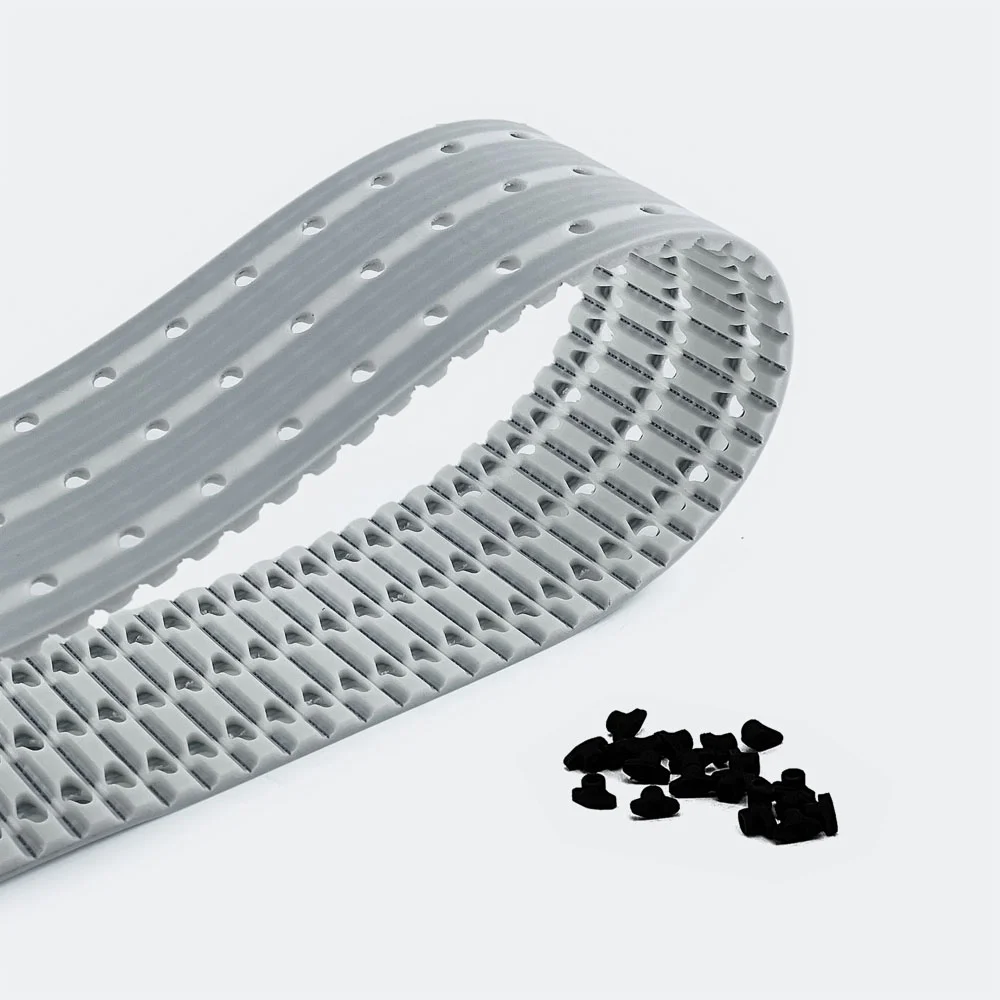

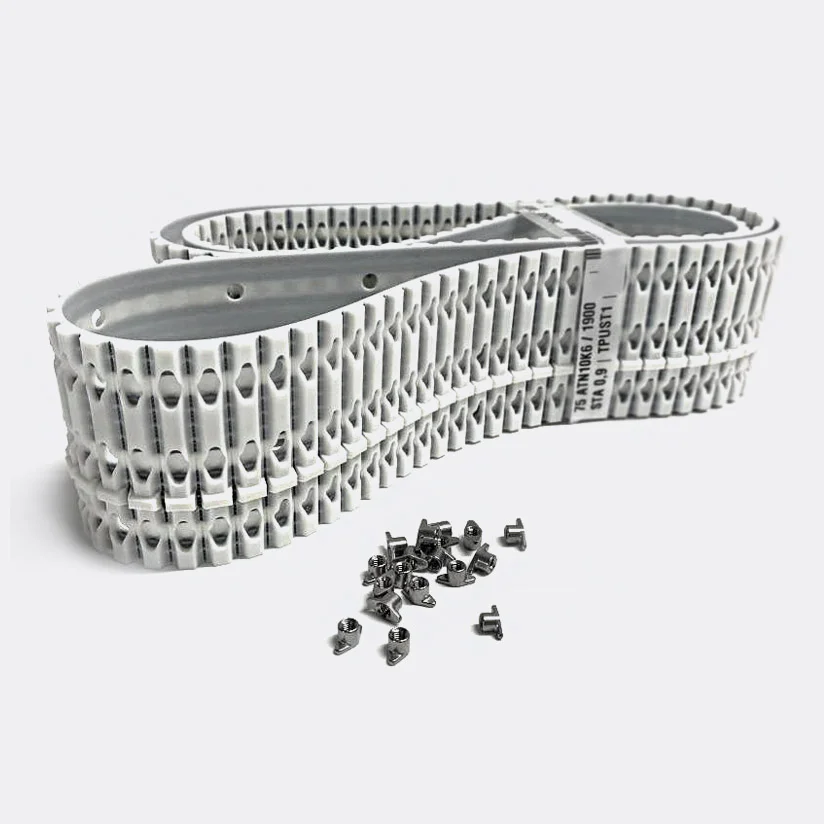

(NFT & PAZ) and to the reverse side (NFB & PAR). Supports can be mounted on the reverse side to handle various traction applications.

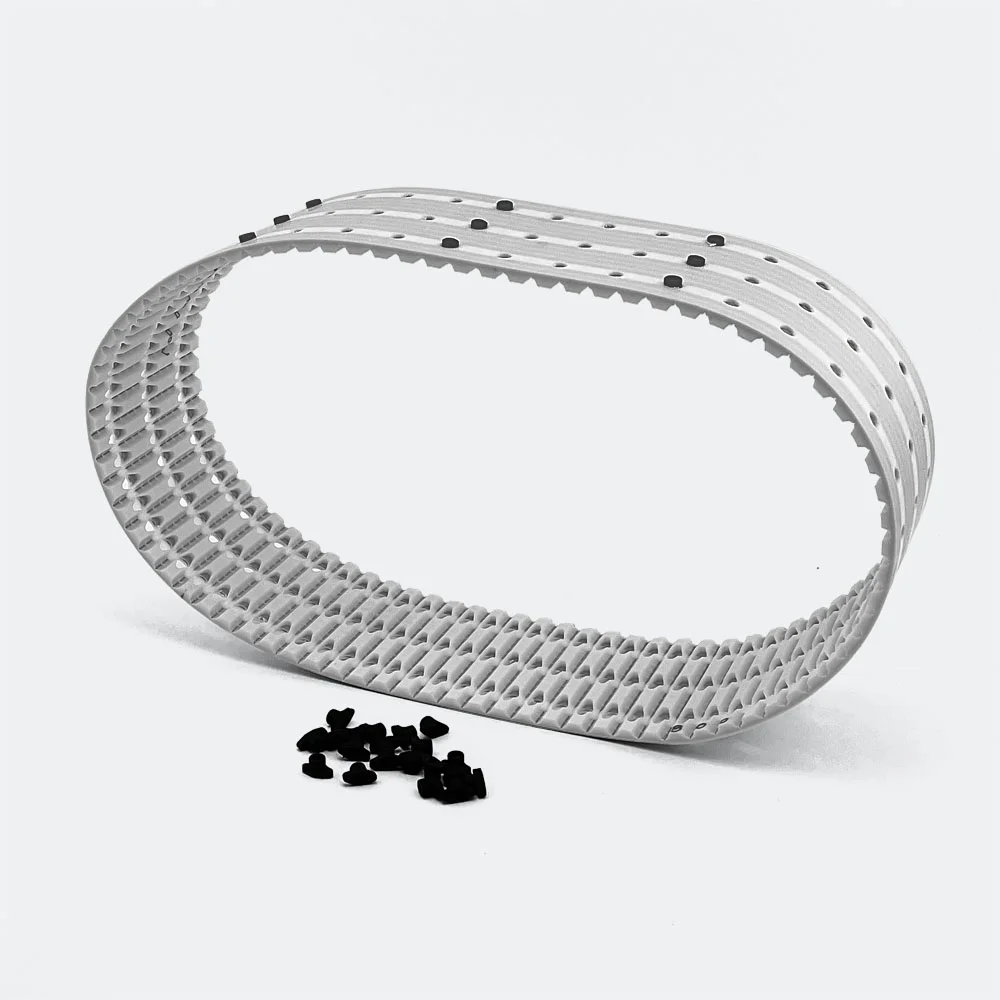

It is possible to assemble an open ATN20 timing belt into a welded timing belt of your desired length using a welding tool.

BRECO® ATN10 and the length of the ATN10

ATN20 ( M/V )	Available lengths and designs

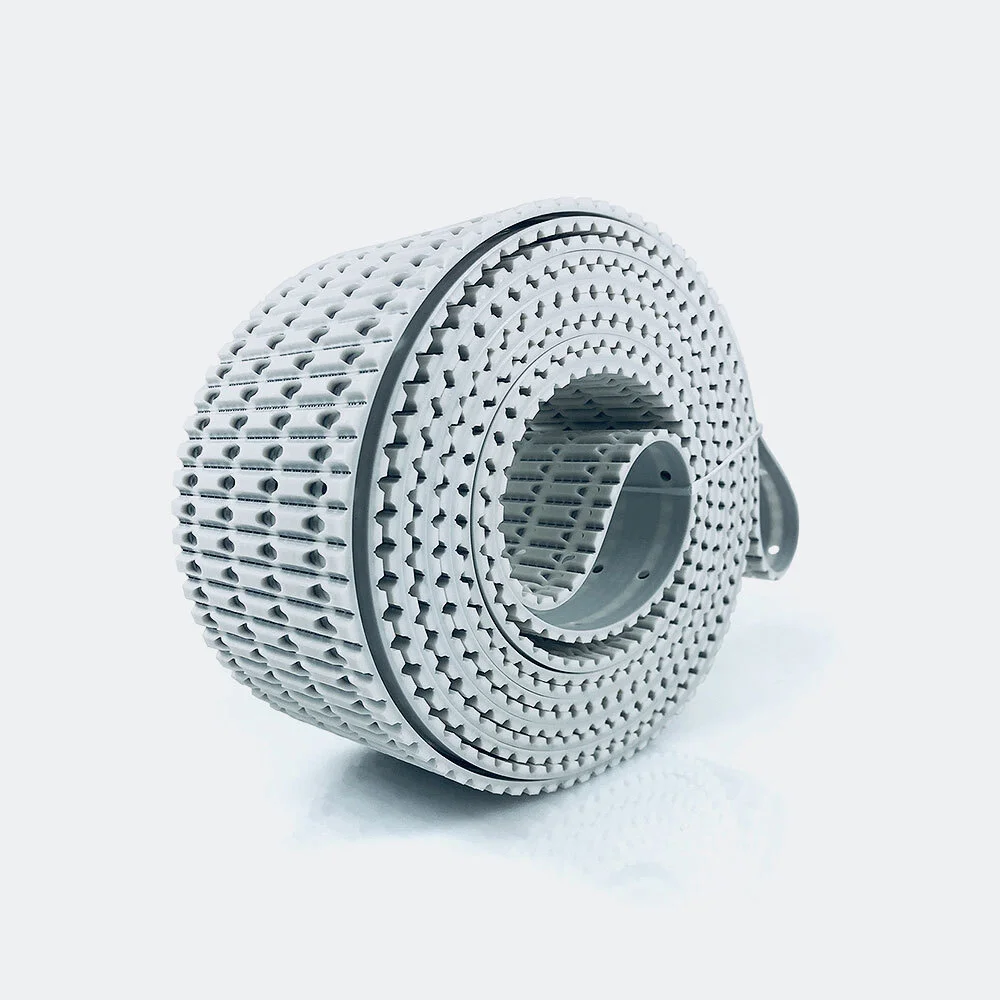

Standard lengths (M):	50 & 100 m rolls
Length > 100 m:	upon request
Minimum welded length (V):	800 mm
Standard Material:	TPUST1
Color:	White
Food approval:	upon request
Minimum number of teeth:	Z 20
Minimum disc diameter:	125 mm
