TIMING BELT 2520 GLD8

Megadyne 2520-GLD8 ISORAN® GOLD timing belt - Effective length: 2520 mm - Number of teeth: 315

The Isoran timing belt GLD 8M 2520 from Megadyne is available in the following widths: 10mm - 130mm. Other widths are available upon request.

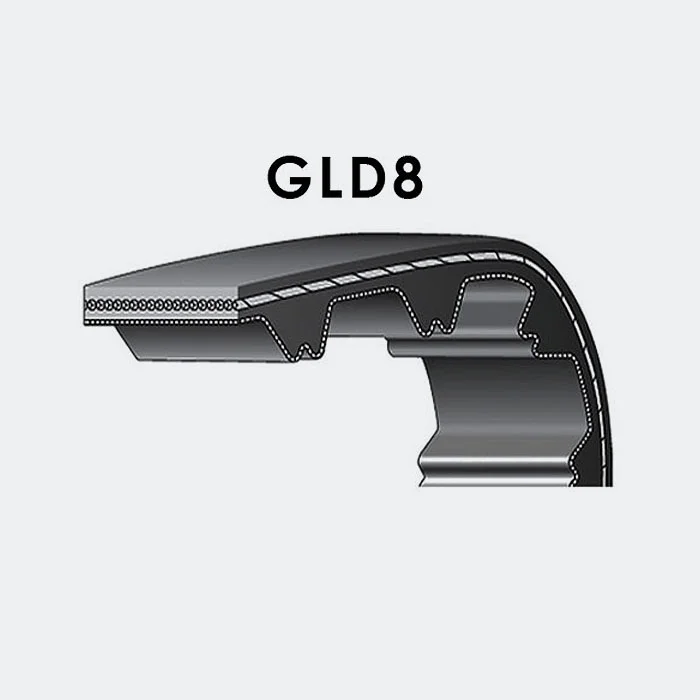

This rubber timing belt has fiberglass reinforcement and a nylon fabric covering on the toothed side. The belt is endless without a joint. Standard GLD 8 profile - DIN 7721. A metric timing belt with round teeth. Timing belts are an essential component of many machines today. They are primarily used for power transmission or conveying. A timing belt is best described as a belt with cast-in teeth on the inside that secure the belt's position in the pulley. By using a GLD 8 profile timing belt, you can build a belt drive with very high performance and synchronous characteristics with great precision.

We at Wantabelt can help you calculate new and existing timing belt drives using our calculation software.

Important: These timing belts are cut to width upon order and cannot be returned.

Example of timing belt: 2520-GLD8-50

50 = Width in mm.

{Module 628}
GLD 8 = Type/Tooth spacing in mm.
2520 = Length in mm.

Also mentioned by other brands:

MEGADYNE - ISORAN GOLD GLD8® - 960 GLD8 85
OPTIBELT - OMEGA HL 8M® - 960 HTD 8M 50
GOALS - POWERGRIP GT3 8M® - 960 HTD 8M 30 GT3
CONTITECH - CONTI SYNCHROFORCE CXA 8M® - 960 CXA 8M 20

Our high-quality rubber timing belts may occasionally be supplied by alternative manufacturers of equivalent quality to ensure the fastest possible delivery time. Please note that these timing belts are custom-made and therefore cannot be exchanged or returned.
