Taper-Lock HTD 5M

HTD 5M taperlock

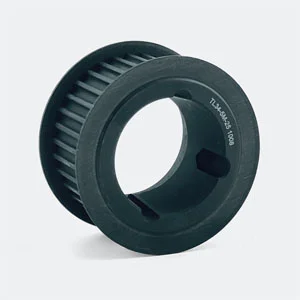

Wantabelt offers HTD timing belt pulleys for HTD 5M timing belts in a bushing design with a 5 mm tooth pitch. Standard widths are 15 mm and 20 mm. The Taperlock (TB) bushings serve as the locking mechanism. HTD stands for "High Torque Drive" and offers compatibility with both HTD and RPP timing belts. These timing belt pulleys have high tensile strength and are used in various industries. They comply with REACH and RoHS directives.
